CUDA ↔ Triton cheat-sheet

Reference · the execution-model vocabulary, compressed · keep open while reading lessons

The one-line model

CUDA: you write code for one thread → one scalar. Triton: you write code for one program instance → one tile (block of data). The compiler turns your tile into threads.

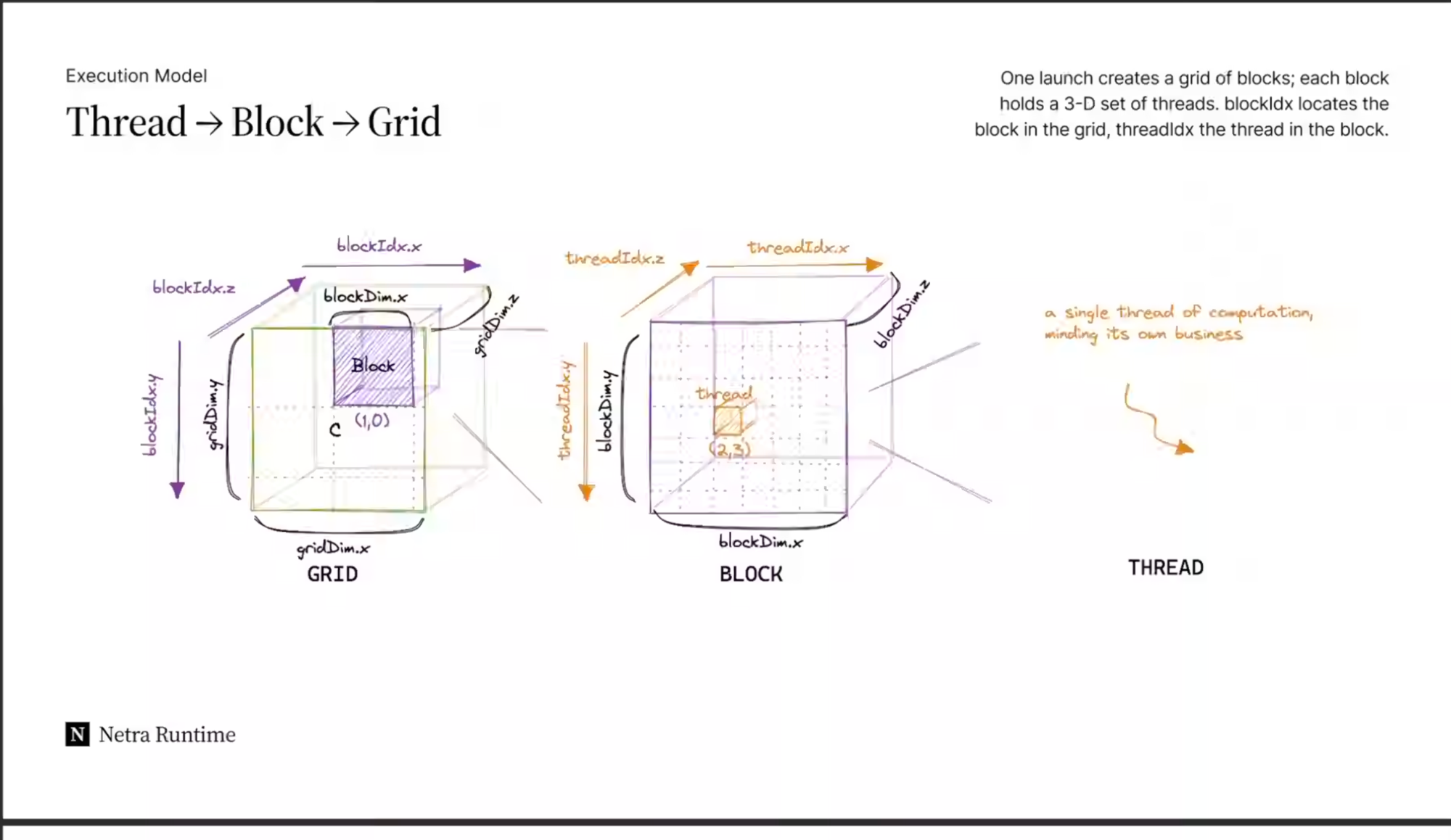

CUDA execution model diagram: GRID of blocks, BLOCK of threads, and a single THREAD. Triton programs at the BLOCK level and removes the THREAD level from source code. — The CUDA execution model. Triton programs at the BLOCK level; the THREAD level is compiler-managed.

Glossary (adhere to this in every lesson)

Term	Meaning
Grid	All the work for a single kernel launch; a (multi-dim) array of blocks/programs.
Block (CUDA)	A group of threads sharing fast on-chip memory; can synchronize. The unit Triton programs at.
Thread (CUDA)	The smallest execution unit; processes one scalar. Invisible in Triton source.
Program instance (Triton)	One run of your `@triton.jit` kernel. Occupies the role of a CUDA block, but its body operates on a whole tile.
Tile (Triton)	A small fixed-size array (dims are powers of two) that one program loads, computes, and stores as a unit.
SPMD	Single Program, Multiple Data. Both models are SPMD — Triton just blocks programs instead of threads.
Mask	Boolean tile that disables out-of-bounds lanes so the last (ragged) block is safe.

Symbol map

CUDA	Triton	Question it answers
`blockIdx.x`	`tl.program_id(axis=0)`	Which block/program am I?
`blockIdx.{y,z}`	`tl.program_id(1)`, `tl.program_id(2)`	2-D / 3-D launch grids.
`gridDim.x`	launch `grid` tuple; `tl.num_programs(0)`	How many programs total?
`blockDim.x`	`BLOCK_SIZE: tl.constexpr`	How many elements per program (you choose / autotune).
`threadIdx.x`	— none —	(Compiler-owned. You never write it.)
`__shared__` / `__syncthreads()`	— none —	(Compiler allocates & synchronizes shared memory.)

What the Triton compiler does for you

Things you'd hand-tune in CUDA that simply don't appear in Triton code:

memory coalescing
thread swizzling
shared-memory allocation, synchronization & bank-conflict avoidance
automatic vectorization & pre-fetching
tensor-core-aware instruction selection
asynchronous copy scheduling

Triton docs · Introduction↗

The kernel skeleton (memorize the shape)

The canonical Triton kernel skeleton, in six beats, plus its launch.

Listen first: memorize the kernel as six beats. One, who am I — pid reads the program id. Two, my indices — offsets is pid times BLOCK_SIZE plus a range up to BLOCK_SIZE, the tile this program owns. Three, guard the edge — mask keeps offsets below n_elements. Four, load the input tile under the mask. Five, compute over the whole tile. Six, store the result tile under the mask. The launch below builds the grid as n_elements divided by BLOCK_SIZE, rounded up with triton.cdiv, then launches the kernel over it.

@triton.jit
def kernel(x_ptr, ..., n_elements, BLOCK_SIZE: tl.constexpr):
    pid     = tl.program_id(axis=0)             # 1. who am I
    offsets = pid * BLOCK_SIZE + tl.arange(0, BLOCK_SIZE)  # 2. my tile of indices
    mask    = offsets < n_elements              # 3. guard the edge
    x       = tl.load(x_ptr + offsets, mask=mask)         # 4. load tile
    # ... compute over the whole tile ...                # 5. tensor math
    tl.store(out_ptr + offsets, result, mask=mask)       # 6. store tile

# launch
grid = lambda meta: (triton.cdiv(n_elements, meta['BLOCK_SIZE']),)
kernel[grid](x, ..., n_elements, BLOCK_SIZE=1024)

Six beats: who am I → my indices → mask → load → compute → store.
